DS-1 Portable Decontamination Shower: Rapid On-Site CBRN Decontamination
)
)
)
)
)
)
Industrial-Grade Mobile Decon for HAZMAT, Emergency Response & Military Operations
Deploy the DS-1 anywhere a fast, reliable decontamination capability is needed—Toxic Industrial Chemicals (TICs), Chemical Warfare Agents (CWAs), biological contaminants, radiological particulates, or unknown CBRN threats. Use it for personnel in PPE or direct full-body decontamination in remote or disaster-stricken zones.
Why Choose the DS-1 Over Fixed or Temporary Systems?
- Unmatched Mobility: Total system ~152 lbs (69 kg)
- Shower: 88 lbs (40 kg)
- Decontamination box: 64 lbs (29 kg)
- Rapid Deployment: Fully operational in < 60 minutes. No construction or permanent plumbing required.
- All-Weather Resilience: Tented roof prevents rain pooling; integrated basin manages wastewater.
- Continuous Operation: Built with industrial-grade components for sustained use.
- Pallet Shipping Required: Specialized, multi-component system ships on a pallet.
Key Features — Engineered for Life-Saving Efficiency
Instant Inflation Technology
- Single-valve, rapid inflation (≈ < 60 seconds), with pressure safety valve.
- Durable enclosure:
- Inflated: 78.74" L × 78.74" W × 96.45" H (200 × 200 × 245 cm)
- Packed: 43.3" L × 31.5" W × 13.78" H (110 × 80 × 35 cm)
- Packed Size (quick reference): Shower ≈ 3′ × 4′ × 1′; Decon box ≈ 2′ × 1′ × 2′
Precision Decontamination Coverage
- 5 fixed nozzles + 1 wall-mounted hand shower deliver 360° body/suit coverage.

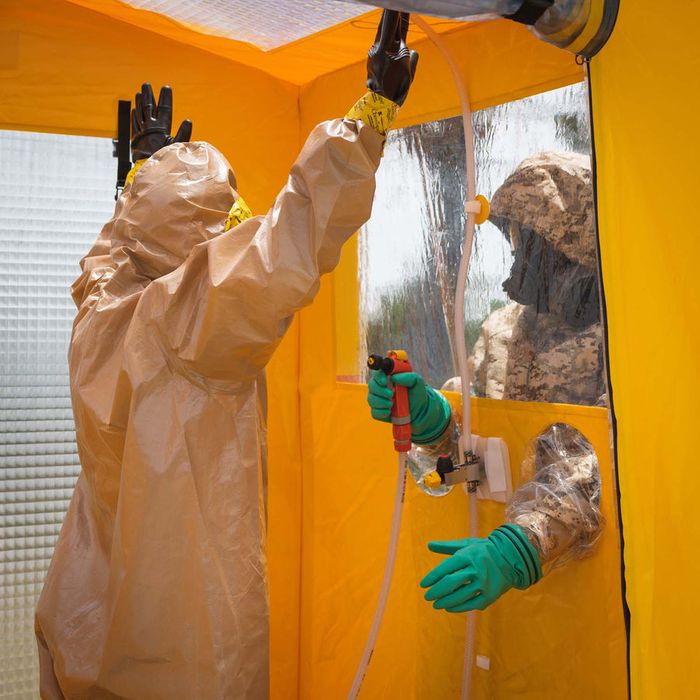

- External assist sleeves allow an operator to run the hand shower from outside the unit.
- Clear viewing windows provide maximum lighting and visibility for assisted decontamination.
Industrial Pump System
WPS 5.2 Pump (Cleaning)
- Flow: 19 L/min
- Continuous runtime: up to 20 minutes
- Inputs: 3/8" BSP, 1/2" hoses
- Maximum suction height: 3 m
- Motor: 185 W
- Switch pressure: 3.7 bar
- Cut-off pressure: 5 bar
- Max liquid temperature: 50 °C (122 °F)
WPS 2.4 Pump (Drainage via suction bucket)
Flow: 9 L/min
Continuous runtime: up to 20 minutes
Inputs: 3/8" BSP, 1/2" hoses
Maximum suction height: 2 m
Motor: 87 W
Temperature Envelope: Ambient operation up to 60 °C (140 °F); pump liquid temperature limit 50 °C (122 °F).
Simplified Command & Control
- Intuitive 3-switch interface, operable while wearing full PPE.
- Power: 220 V / 24 V / 300 W (generator or inverter-ready).
Integrated Waste Management

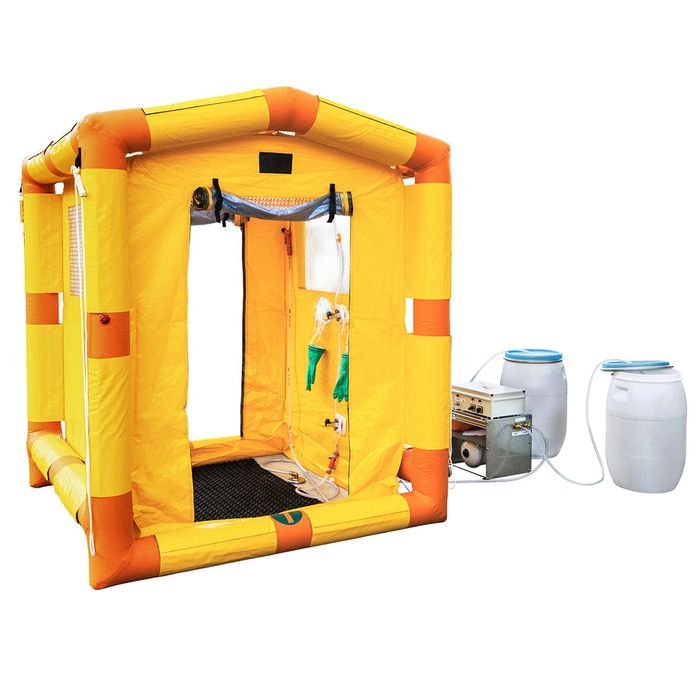

- Pre-routed lines to two 120-liter barrels (cleaning solution & wastewater).
- Built-in drainage basin prevents hazardous pooling; continuous 9 L/min waste extraction.
Field-Ready Durability
- Repair kit + 4 patches included for in-field maintenance.
- 5-year warranty for long-term serviceability.
